Our tanks are molded of FDA virgin grade Linear Medium Density Polyethylene resin, natural in color. Our tank resin has a long term UV package and is suitable for use in or out of direct sunlight. The high impact resin we use is not affected by warm , or cold temperatures.
Waste tanks have an average wall thickness of .250". Special "heavy duty" .375" wall thickness waste tanks are available on special order to assist with odor control and longevity on larger yachts. Please add 30% to the price below for .375" wall thickness.
NOTE: Tank installations should have the walls reinforced , by using plywood or foaming the tank in place.
To place an order, find a tank you need, print it out, draw in fittings per your specifications, fax the drawing along with shipping information to (561)586-0181. If using a credit card please include your credit card information.
Tanks that are too big to ship via UPS will be shipped Common Carrier freight collect.
|
Part #
|
Description
|
Gallons
|
Length
|
Width
|
Height
|
Price
|
Drawing
|
|
207020
|
20 Gallon Tank
|
20
|
16
|
16
|
19
|
$143.00
|
|
|
130020
|
20 Gallon Tank
|
20
|
24
|
18
|
11.75
|
$152.00
|
.gif)
|
|

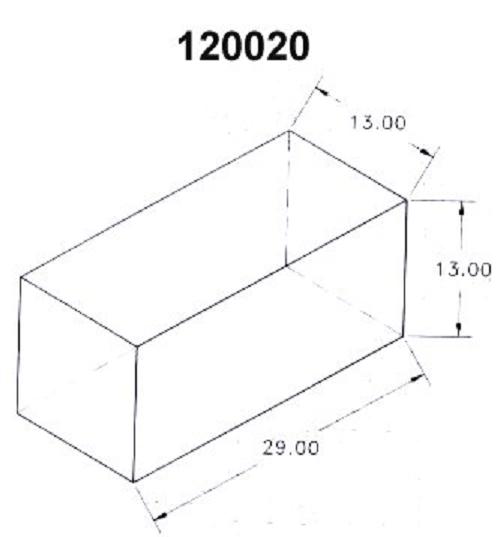

120020
|
20 Gallon Tank
|
20
|
29
|
13
|
13
|
$143.00
|
|
|
209021
|
20 Gallon Tank
|
20
|
30.5
|
27.75
|
10
|
$**.**
|
|
|
102020
|
20 Gallon Tank
|
20
|
24
|
12
|
16
|
$154.00
|
|
|

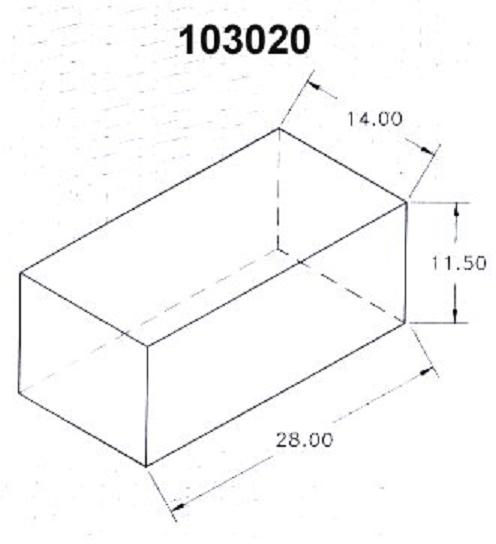

103020
|
20 Gallon Tank
|
20
|
28
|
14
|
11.5
|
$143.00
|
|
|

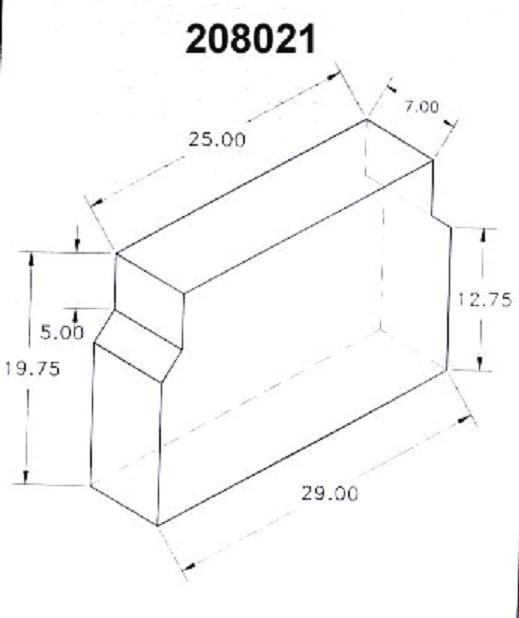

208021
|
21 Gallon Tank
|
21
|
29
|
25
|
19.75
|
$154.00
|
|
|

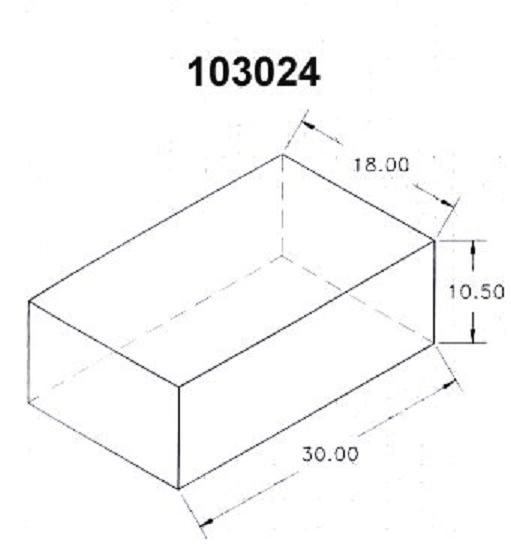

103024
|
24 Gallon Tank
|
24
|
30
|
18
|
10.5
|
$160.00
|
|
|

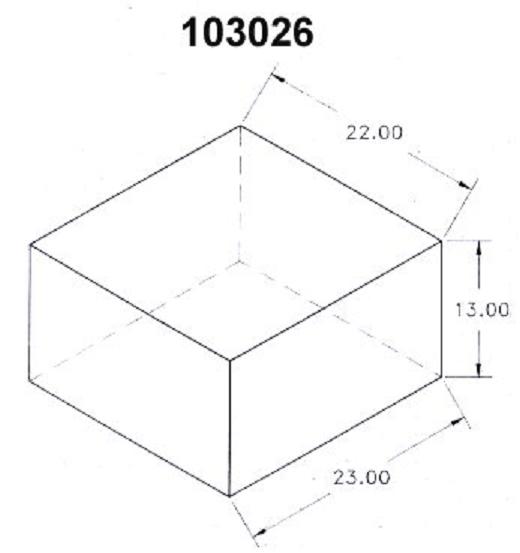

103026
|
26 Gallon Tank
|
26
|
23
|
22
|
13
|
$165.00
|
|
|

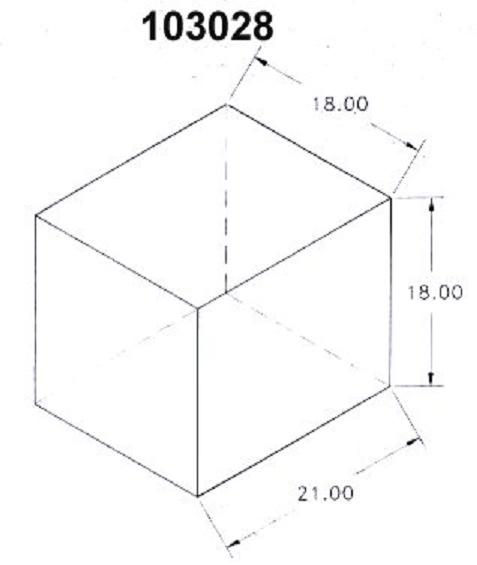

103028
|
28 Gallon Tank
|
28
|
21
|
18
|
18
|
$180.00
|
|
|

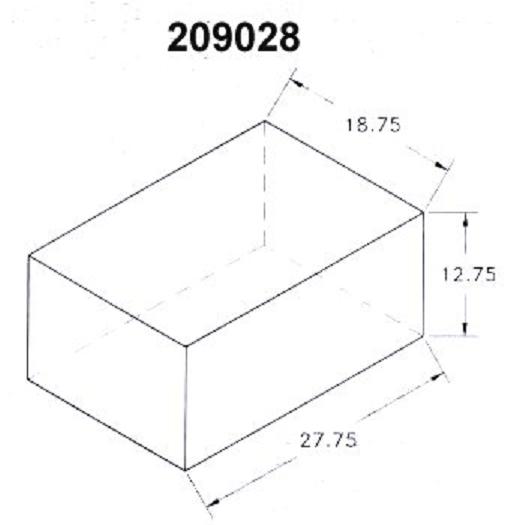

209028
|
28 Gallon Tank
|
28
|
27.75
|
18.75
|
12.75
|
$180.00
|
|
|

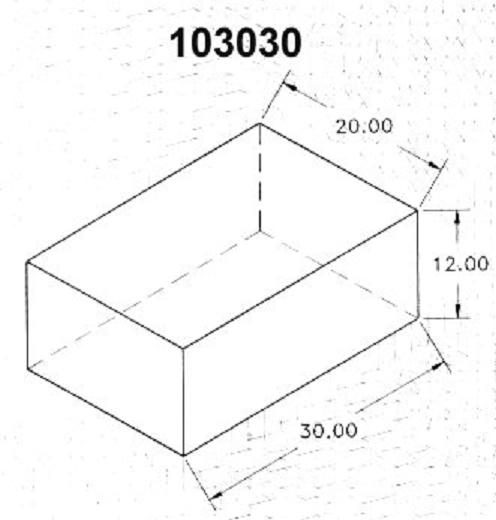

103030
|
30 Gallon Tank
|
30
|
30
|
20
|
12
|
$194.00
|
|
|
|
|
|
|
|
|
|
|
|

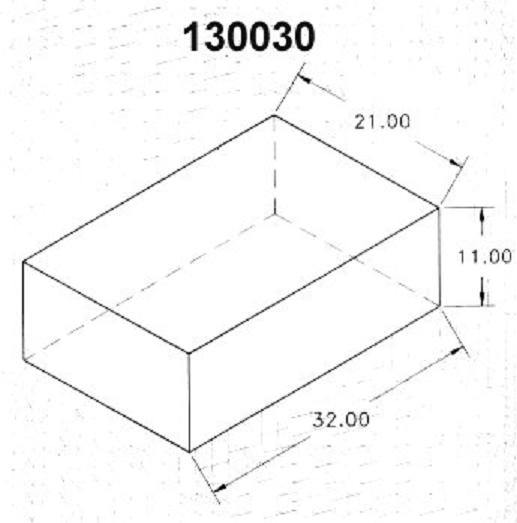

130030
|
30 Gallon Tank
|
30
|
32
|
21
|
11
|
$194.00
|
|
|

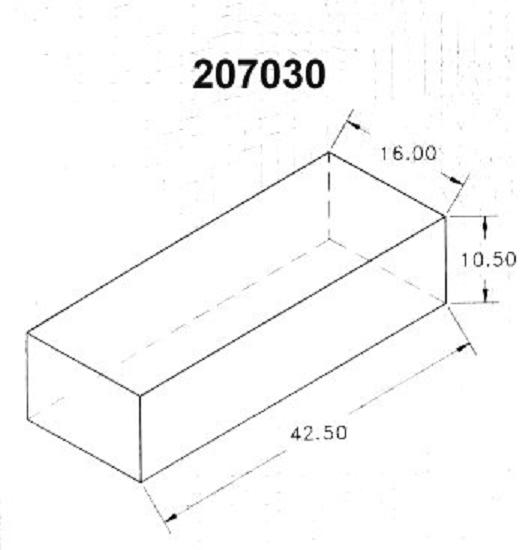

207030
|
30 Gallon Tank
|
30
|
42.5
|
16
|
10.5
|
$194.00
|
|
|

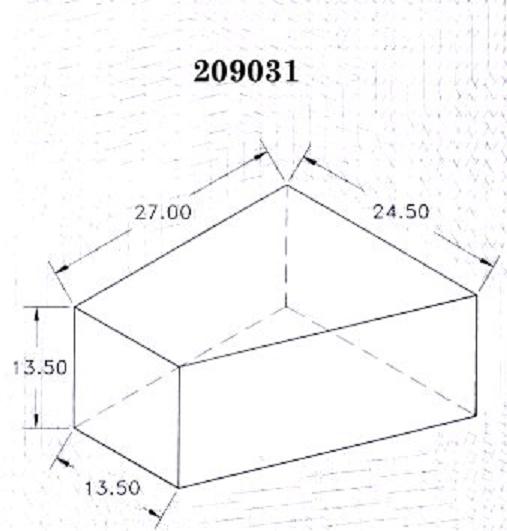

209031
|
31 Gallon Tank
|
31
|
27
|
24.5
|
13.5
|
$194.00
|
|
|

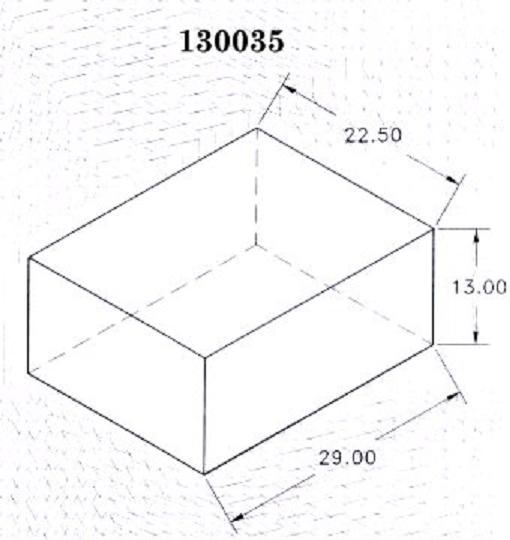

130035
|
35 Gallon Tank
|
35
|
29
|
22.5
|
13
|
$208.00
|
|
|

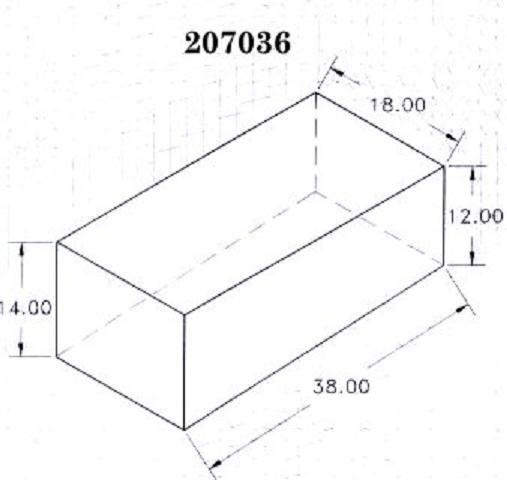

207036
|
36 Gallon Tank
|
36
|
38
|
18
|
12
|
$212.00
|
|
|

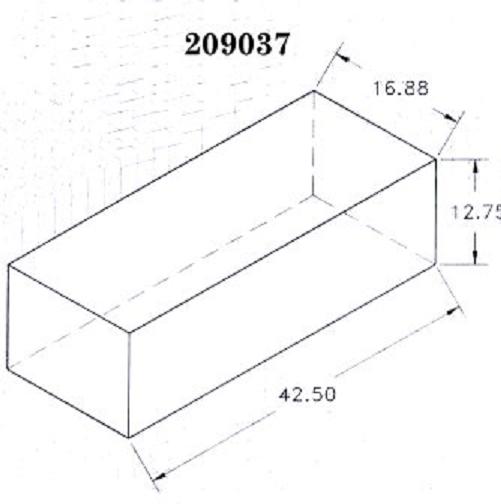

209037
|
37 Gallon Tank
|
37
|
42.5
|
16.88
|
12.75
|
$212.00
|
|
|

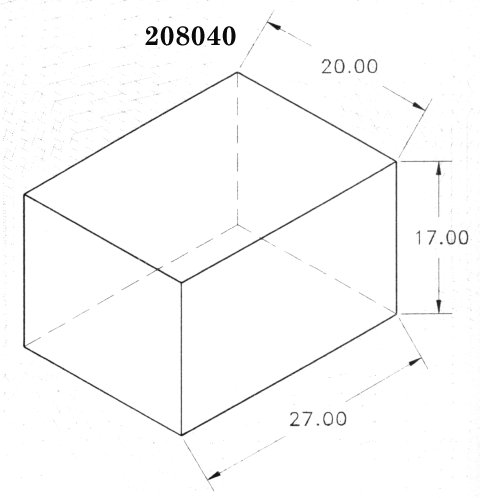

208040
|
40 Gallon Tank
|
40
|
27
|
20
|
17
|
$247.00
|
|
|
120040
|
40 Gallon Tank
|
40
|
33.5
|
18
|
15.5
|
$248.00
|
|
|
103040
|
40 Gallon Tank
|
40
|
30
|
21.5
|
13.5
|
$247.00
|
No Drawing
|
|

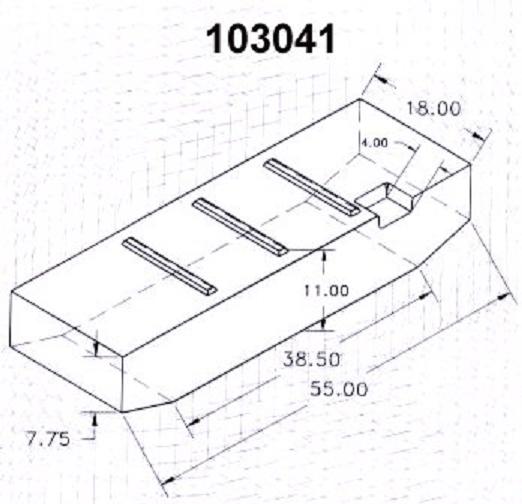

103041
|
40 Gallon Tank
|
40
|
55
|
18
|
7.75
|
$287.00
|
|
|

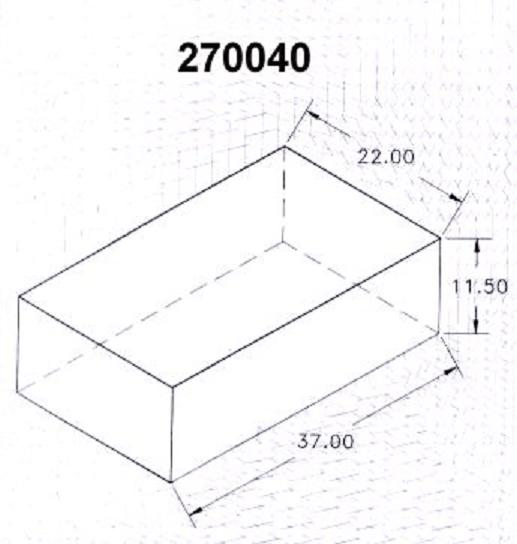

270040
|
40 Gallon Tank
|
40
|
37
|
22
|
11.5
|
$247.00
|
|
|

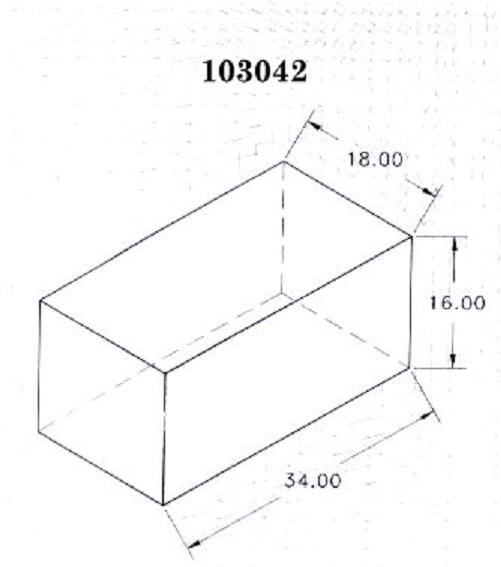

103042
|
42 Gallon Tank
|
42
|
34
|
18
|
16
|
$254.00
|
|
|

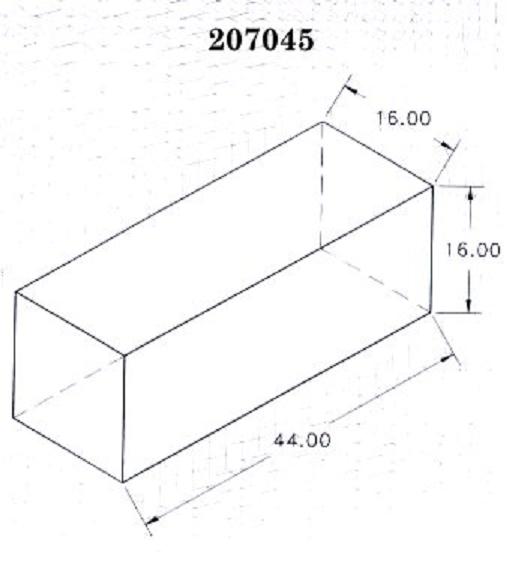

207045
|
45 Gallon Tank
|
45
|
44
|
16
|
16
|
$262.00
|
|
|

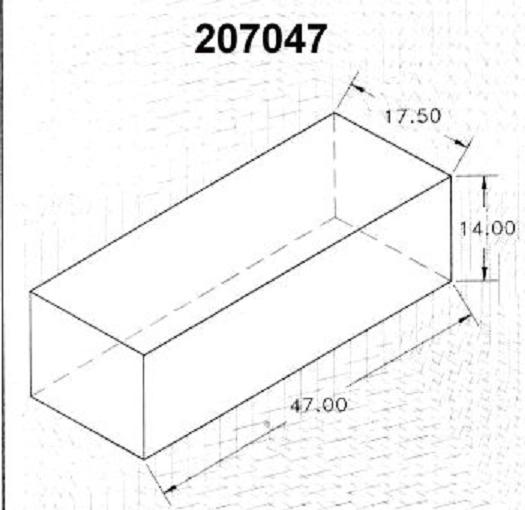

207047
|
47 Gallon Tank
|
47
|
47
|
17.5
|
14
|
$269.00
|
|
|

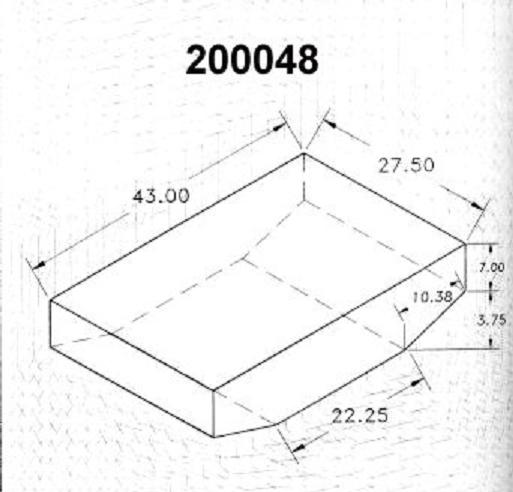

200048
|
48 Gallon Tank
|
48
|
43
|
27.5
|
10.75
|
$342.00
|
|
|

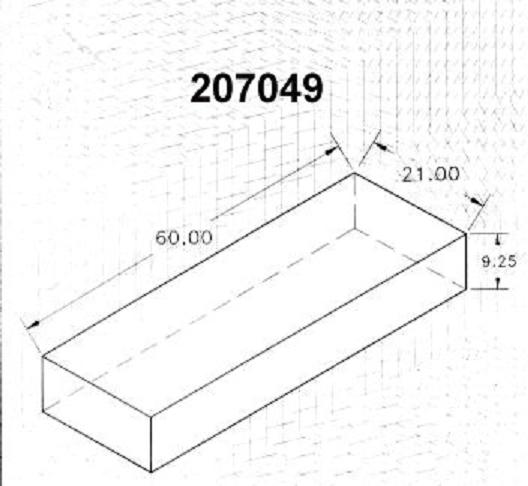

207049
|
49 Gallon Tank
|
49
|
60
|
21
|
9.25
|
$262.00
|
|
|

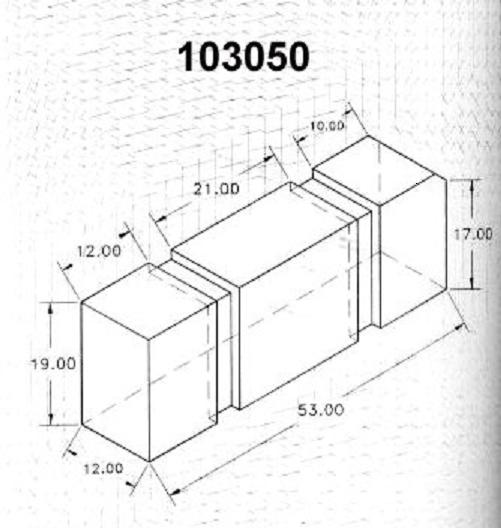

103050
|
50 Gallon Tank
|
50
|
53
|
12
|
19
|
$342.00
|
|
|
300050
|
50 Gallon Tank
|
50
|
40
|
12
|
31
|
$345.00
|
|
|

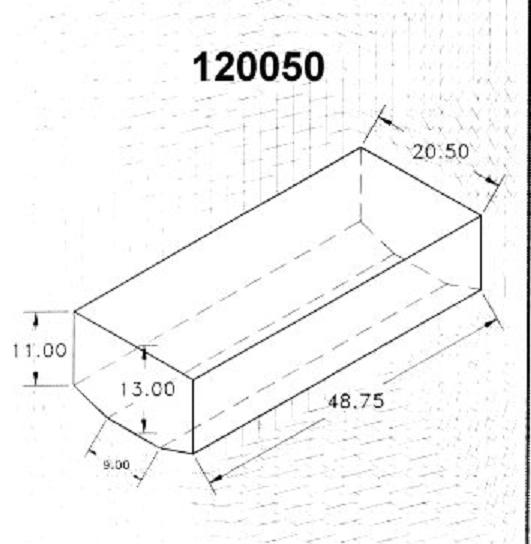

120050
|
50 Gallon Tank
|
50
|
48.75
|
20.5
|
11
|
$345.00
|
|
|

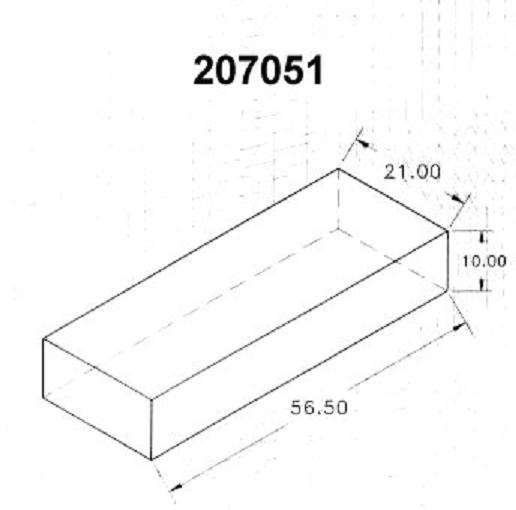

207051
|
51 Gallon Tank
|
51
|
56.5
|
21
|
10
|
$342.00
|
|
|

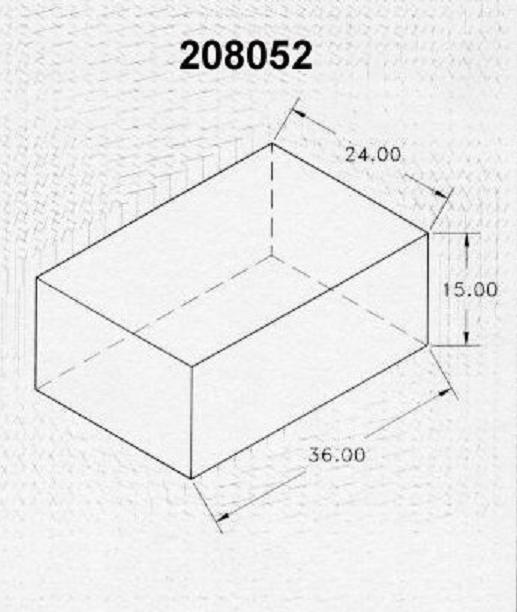

208052
|
52 Gallon Tank
|
52
|
36
|
24
|
15
|
$342.00
|
|
|

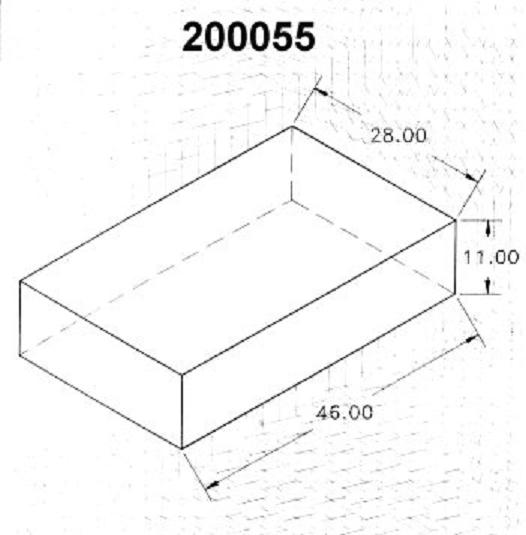

200055
|
55 Gallon Tank
|
55
|
46
|
28
|
11
|
$351.00
|
|
|

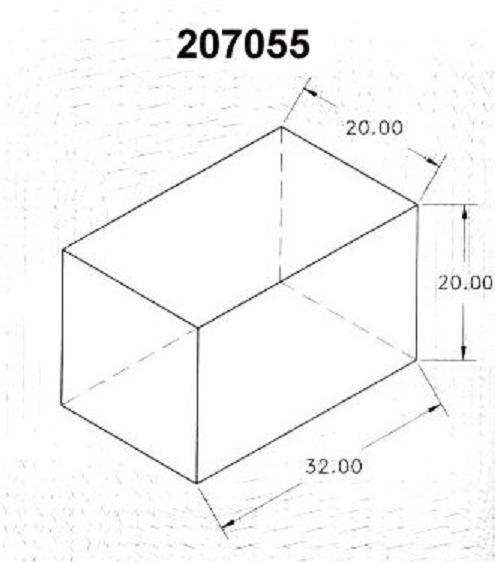

207055
|
55 Gallon Tank
|
55
|
32
|
20
|
20
|
$351.00
|
|
|
209055
|
55 Gallon Tank
|
55
|
42
|
20
|
15
|
$351.00
|
|
|

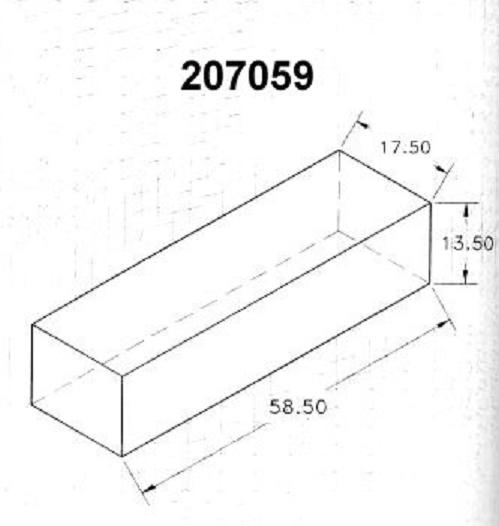

207059
|
59 Gallon Tank
|
59
|
58.5
|
17.5
|
13.5
|
$355.00
|
|
|

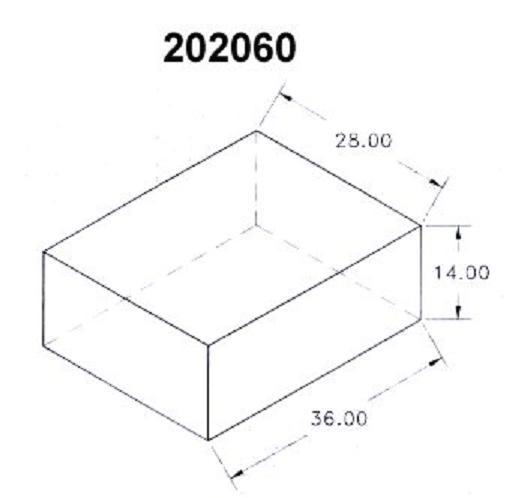

202060
|
60 Gallon Tank
|
60
|
36
|
28
|
14
|
$362.00
|
|
|

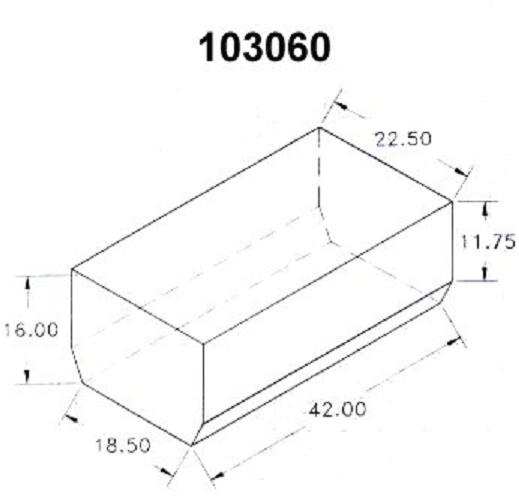

103060
|
60 Gallon Tank
|
60
|
42
|
22.5
|
11.75
|
$362.00
|
|
|
103066
|
66 Gallon Tank
|
66
|
33
|
32
|
15
|
$362.00
|
|
|

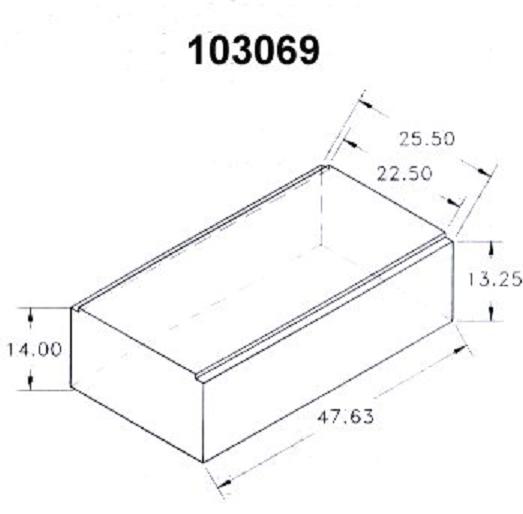

103069
|
69 Gallon Tank
|
69
|
47.63
|
22.5
|
13.25
|
$374.00
|
|
|
103072
|
72 Gallon Tank
|
72
|
77
|
18
|
12
|
$384.00
|
|
|

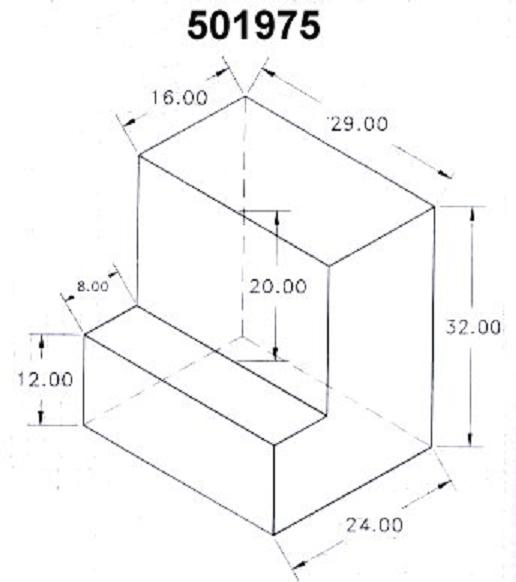

501975
|
75 Gallon Tank
|
75
|
24
|
29
|
32
|
$434.00
|
|
|

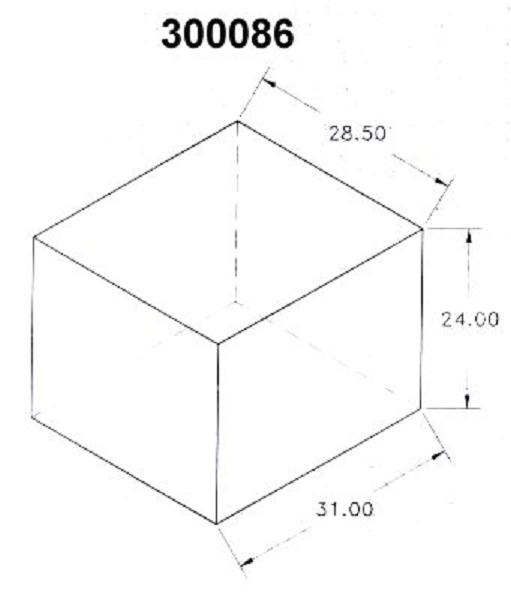

300086
|
86 Gallon Tank
|
86
|
31
|
28.5
|
24
|
$441.00
|
|
|

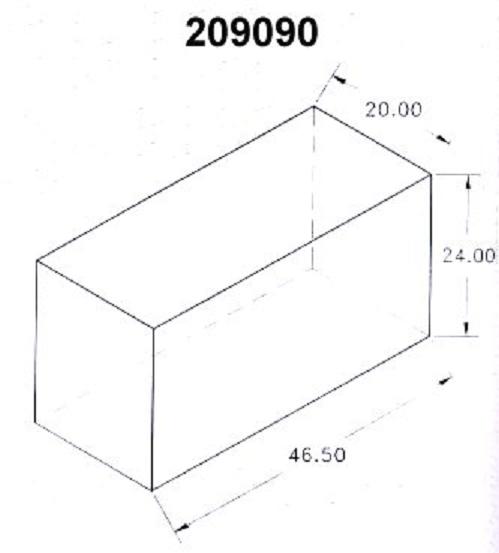

209090
|
90 Gallon Tank
|
90
|
46.5
|
20
|
24
|
$478.00
|
|
|
207095
|
95 Gallon Tank
$500
|
95
|
55
|
22
|
18
|
|
|

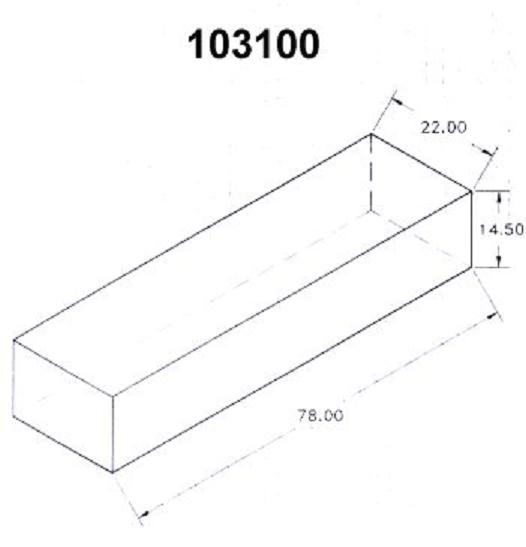

103100
|
100 Gallon Tank
|
100
|
78
|
22
|
14.5
|
$534.00
|
|
|

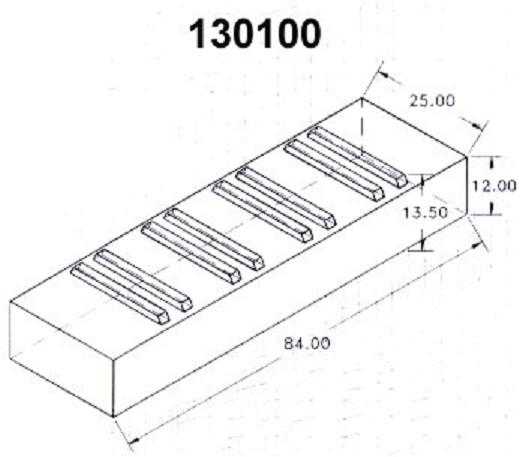

130100
|
100 Gallon Tank
|
100
|
84
|
25
|
12
|
$531.00
|
|
|

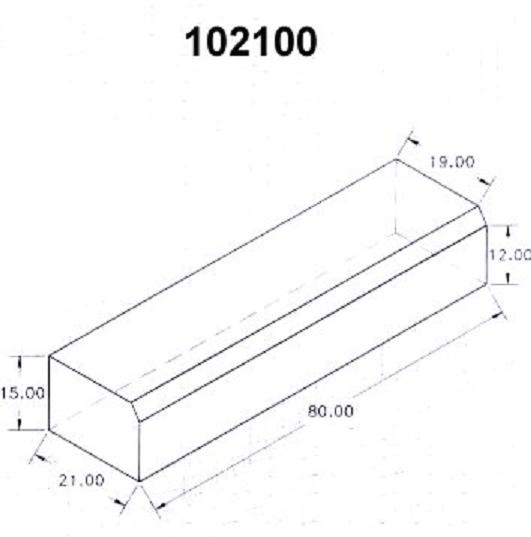

102100
|
100 Gallon Tank
|
100
|
80
|
21
|
15
|
$552.00
|
|
|

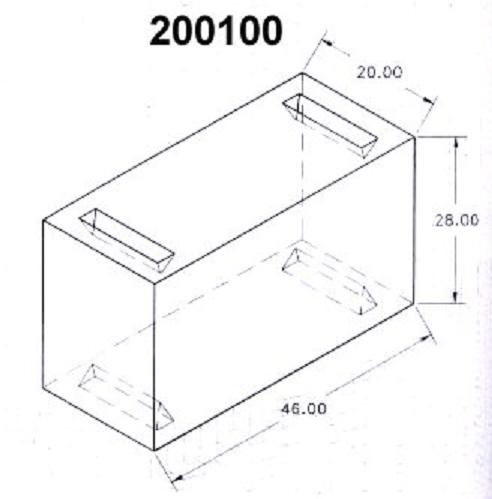

200100
|
100 Gallon Tank
|
100
|
46
|
20
|
28
|
$531.00
|
|
|

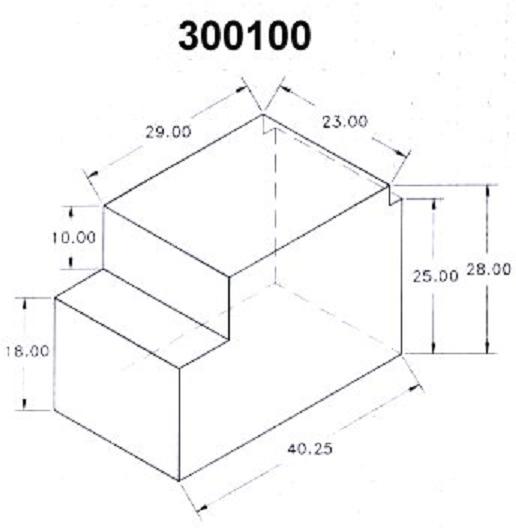

300100
|
100 Gallon Tank
|
100
|
40.25
|
23
|
28
|
$531.00
|
|
|

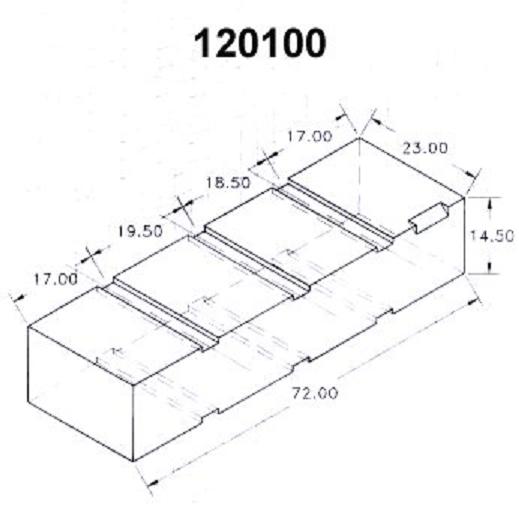

120100
|
100 Gallon Tank
|
100
|
72
|
23
|
14.5
|
$531.00
|
|
|
130101
|
101 Gallon Heavy
Duty Tank
|
100
|
61
|
31
|
20.625
|
$486.00
|
No Drawing
available
|
|

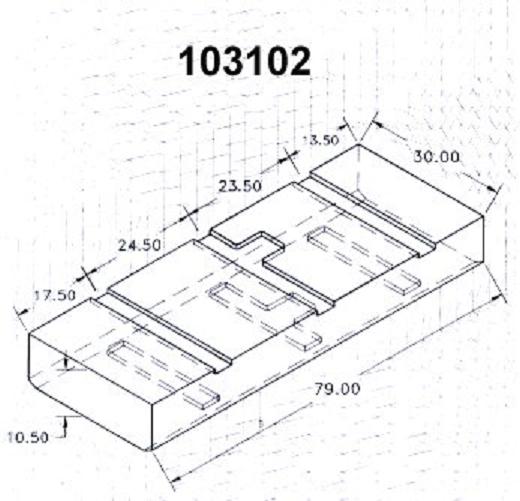

103102
|
102 Gallon Tank
|
102
|
79
|
30
|
10.5
|
$541.00
|
|
|

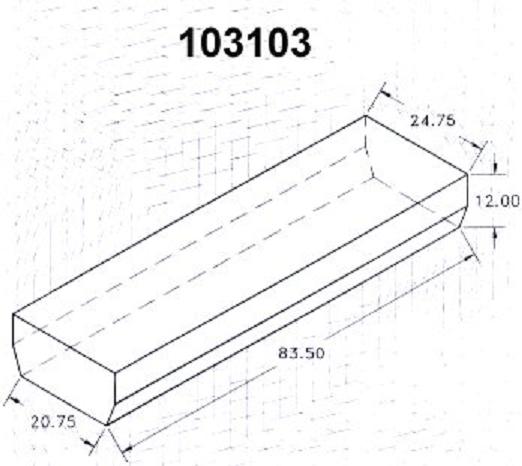

103103
|
103 Gallon Tank
|
103
|
83.5
|
24.75
|
12
|
$541.00
|
|
|
103110
|
110 Gallon Tank
|
110
|
89
|
21
|
14
|
$597.00
|
|
|

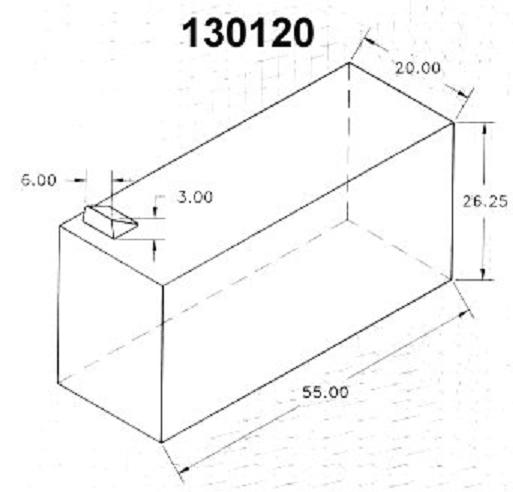

130120
|
120 Gallon Tank
|
120
|
55
|
20
|
26.25
|
$595.00
|
|
|

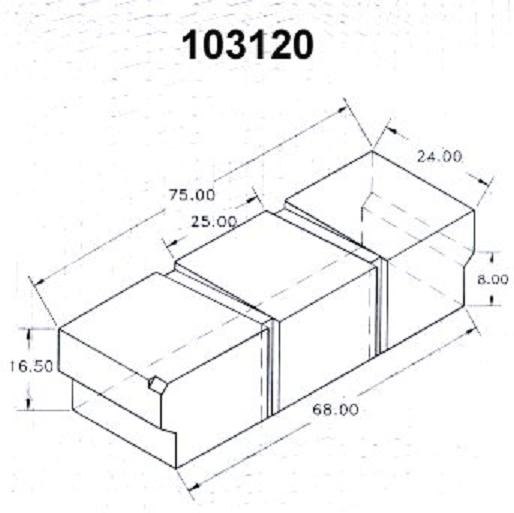

103120
|
120 Gallon Tank
|
120
|
75
|
24
|
16.5
|
$625.00
|
|
|

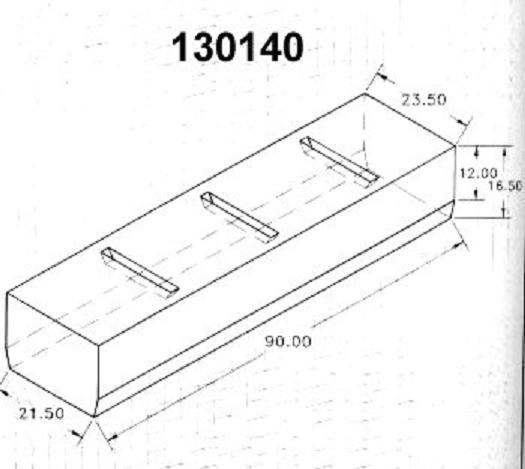

130140
|
140 Gallon Tank
|
140
|
90
|
23.5
|
16.5
|
$649.00
|
|
|

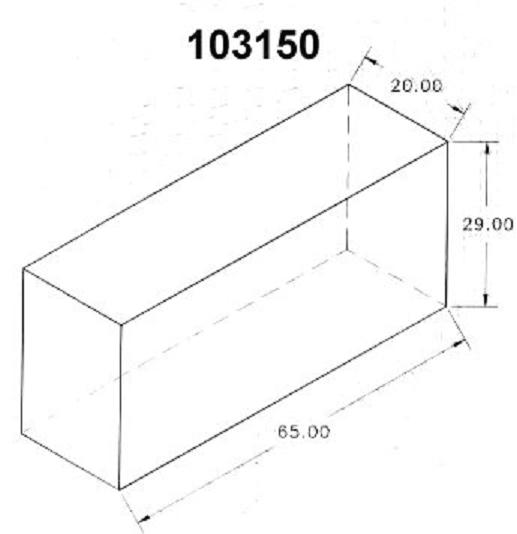

103150
|
150 Gallon Tank
|
150
|
65
|
20
|
29
|
$638.00
|
|
|

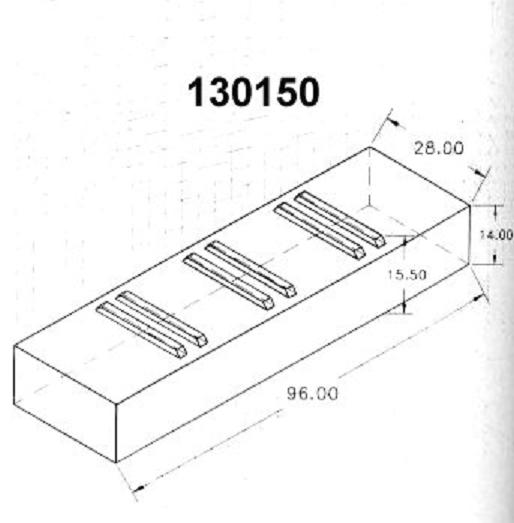

130150
|
150 Gallon Tank
|
150
|
96
|
28
|
14
|
$722.00
|
|
|

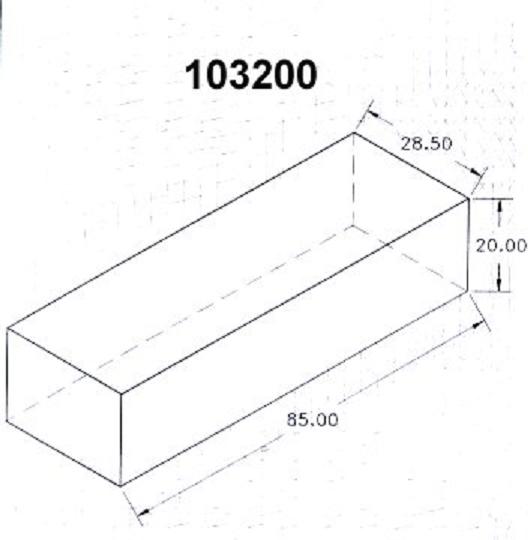

103200
|
200 Gallon Tank
|
200
|
85
|
28.5
|
20
|
$918.00
|
|
|

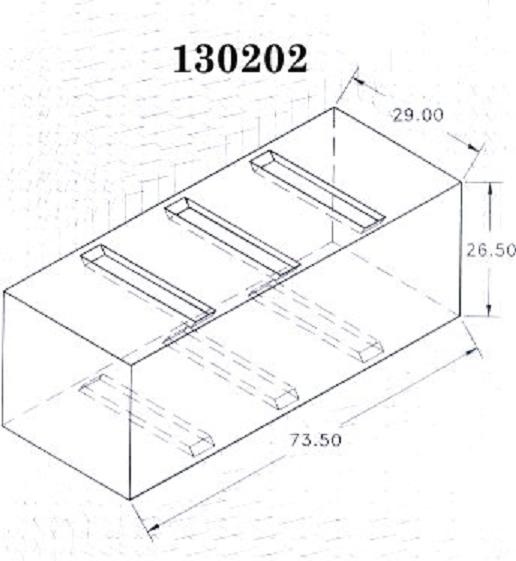

130202
|
230 Gallon Tank
|
230
|
73.5
|
29
|
26.5
|
$845.00
|
|
|
